DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260

  • DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260
  • DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260
Luogo di origine Cina
Marca SDBL
Certificazione ISO
Numero di modello DN230
Quantità di ordine minimo pc 1
Prezzo Negoziabile
Imballaggi particolari Cartone
Tempi di consegna Entro 7 giorni dopo il pagamento
Termini di pagamento Western Union, MoneyGram, T/T
Capacità di alimentazione 500 pezzi al mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome del prodotto Putzmeister indossa l'anello di usura del piatto Modello N.O. DN230
dimensione DN180-DN260 Materiale Lega dura del tungsteno/affrontato
Durezza ≥86 Vita lavorativa 30000cbm-80000cbm
Evidenziare

DN230 Concrete Pump Wear Plate

,

DN180 Concrete Pump Wear Plate

,

229488005
Lasciate un messaggio
Descrizione di prodotto

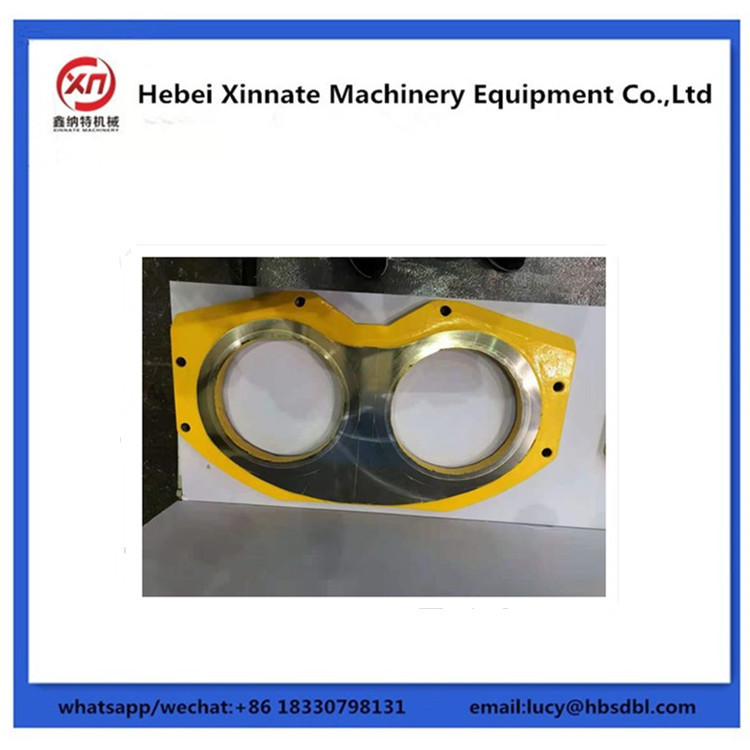

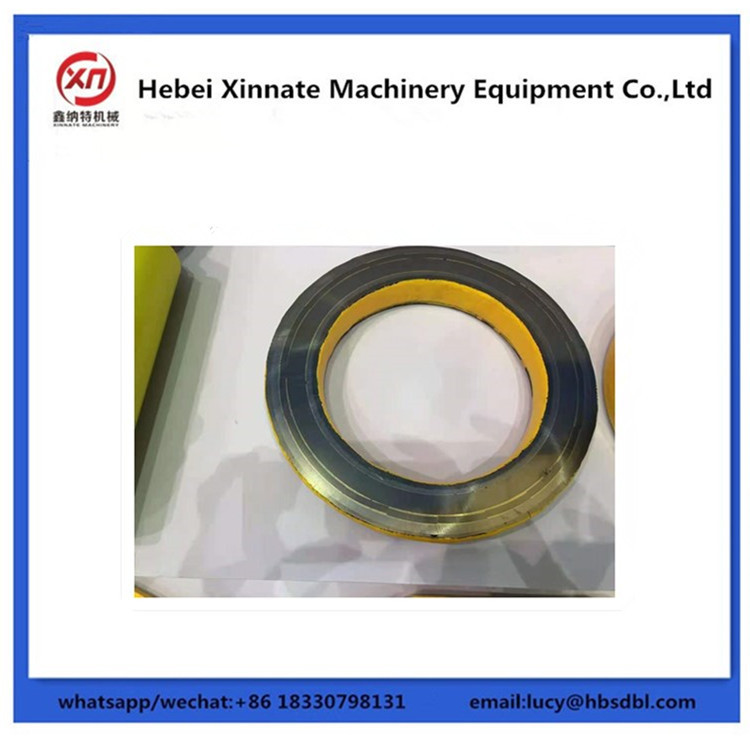

Concrete Pump Putzmeister Wear Plate Wear Ring/Putzmeister Wear Parts/Spectacle Plate Cutting Ring

1.Product description

(1)Working surface with high anti-wear materials to hardface the wear plate and wear ring.

(2)Professional and advance brazing techniques for the tungsten carbide to improve a high wear resistance and impact toughness.

(3)Quality guarantee: spectacle wear plate 30,000 cbm for the normal carbide and 60,000-80,000 for the full carbide under standard pumping situations and materials.

Product name Putzmeister wear plate wear ring
Model No. DN230
Size DN180-DN260
Material Tungsten hard alloy/hardfaced
Hardness ≥86
Working life 30000cbm-80000cbm
Tensile strength ≥2500N/mm2
Color Green/yellow or as client's enquiry
Application Concrete mobile pump



2.Different sizes of concrete pump wear plate and wear ring




Name Specification Material Applicable brand
Wear plate φ200 Tungstencarbidealloy HBT60/HBT80/HBT90concrete pump
Wear plate φ230 Concrete pump truck
Wear plate φ260 Concrete pump truck
Wear plate φ230 Concrete pump truck
Wear plate φ200 HBT60/HBT80/HBT90concrete pump
Wear plate φ260 Concrete pump truck
Cutting ring S60-φ200
Cutting ring φ230-s Concrete pump truck
Cutting ring φ260-s Concrete pump truck
Cutting ring φ230-Z Concrete pump truck
Cutting ring φ200-Z HBT60/HBT80/HBT90concrete pump
Cutting ring φ260-Z Concrete pump truck
Wear plate PM
Cutting ring PM



3.We owned not only putzmeister wear plate and wea ring , also have schwing ,zoomline , sany , cifa , sermac and so on parts brands speculated wear plate and wear ring.

DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260 0

4.Accessories in the warehouse

DN230 Putzmeister Concrete Pump Wear Plate Wear Ring DN180-DN260 1

welcome to purchase!
